Rheostat Resistors

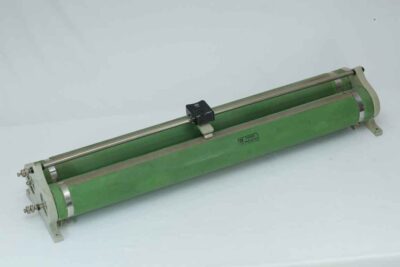

VRT Series
Applications :
VRT series are used for Educational, Testing, Load simulations, Automation control installations, etc. For custom specifications; please contact us.
Technical Specifications:
| Type | Wattage | Resistance | Current Rating | Dimensions in mm | |||
|---|---|---|---|---|---|---|---|
| Min. | Max. | L | W | H | |||
| VRT300S | 300W | 3R | 2K | 0.4A-10A | 310 | 90 | 125 |
| VRT600S | 600W | 4R | 3K6 | 0.4A-12A | 460 | 90 | 125 |
| VRT900S | 900W | 4R | 5K | 0.4A -5A | 585 | 90 | 125 |
| VRT1250S | 1250W | 4R | 6K2 | 0.4A-18A | 710 | 90 | 125 |
| VRT600D | 600W | 1R5 | 1K | 0.8A-20A | 310 | 170 | 125 |
| VRT1200D | 1200W | 3R | 1K8 | 0.8A-20A | 460 | 170 | 125 |
| VRT1800D | 1800W | 3R | 2K5 | 0.8A-25A | 585 | 170 | 125 |
| VRT2500D | 2500W | 4R | 3K | 0.8A-25A | 710 | 170 | 125 |
| VRT3000D | 3000W | 1R5 | 1K5 | 1.5A-45A | 630 | 180 | 260 |
| VRT4000D | 4000W | 2R | 1K75 | 1.5A-45A | 730 | 180 | 260 |
| VRT5000D | 5000W | 2R5 | 2K2 | 1.5A-45A | 830 | 180 | 260 |

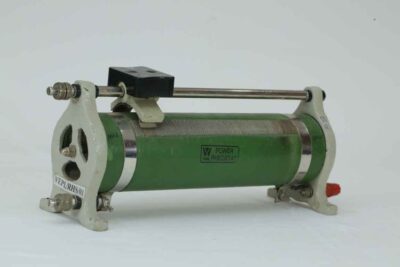

VRT Series - Rheostat Single Core
Applications :
VRT series are used in Load stimulations, Industrial machinery RPM adjustment, Voltage and current adjustment, Instruments and automated control installations. For custom specifications, please contact us to discuss the details.
Technical Specifications:
| Type | Wattage @25ºC |
Resistance range W |
Dimensions in mm | |||||
|---|---|---|---|---|---|---|---|---|
| Min. | Max. | A | B | C | D | E | ||
| VRC-S25 | 25W | 1R | 1K | 40 | 46 | 28 | M3 | 9.5φ |
| VRC-S50 | 50W | 1R | 1K5 | 60 | 46 | 38 | M3 | 9.5φ |
| VRC-S100 | 100W | 2R2 | 2K2 | 80 | 56 | 50 | M4 | 9.5φ |
| VRC-S150 | 150W | 2R2 | 3K3 | 105 | 56 | 63 | M4 | 9.5φ |
| VRC-S200 | 200W | 2R7 | 4K7 | 105 | 75 | 63 | M4 | 9.5φ |
| VRC-S300 | 300W | 3R | 5K6 | 152 | 45 | 90 | M4 | 10φ |
| VRC-S400 | 400W | 4R | 6K8 | 152 | 55 | 90 | M4 | 10φ |
| VRC-S500 | 500W | 5R | 10K | 152 | 65 | 90 | M4 | 10φ |
