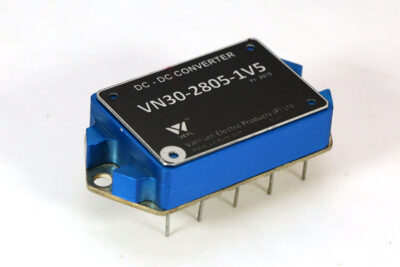

DC-DC Converter 30w
VN30 Series
Description:
VN30 Series DC/DC converter is an easy-to-use step-down DC-DC solution capable of driving up to 30W. These series of DC/DC converters are available in standard J5 package. The VN30 Series DC/DC converters can accept an input voltage rail between 18V and 36V and delivers a constant output voltage depending on model.
No external capacitors/ resistors required. VN30 Series DC/DC converter has reliable and robust design with following protection features: Output short circuit , Over Temperature Shutdown.
No external capacitors/ resistors required. VN30 Series DC/DC converter has reliable and robust design with following protection features: Output short circuit , Over Temperature Shutdown.
Key Features:
- 10 to 36 V input.
- Efficiency up to 94%
- Standard case J5 Package.
- Fixed frequency switching.
- Inhibit function.
- Non-isolated.
- Short circuit protection.
- Over Temperature Shutdown.
- -40O to +85OC operation.
- Compact in size.
- Soft start time of 4.1 ms typical.
Applications:
- Industrial power supplies
- Telecommunication systems
- DC– DC Conversion
- Point of Load Conversions from 24V
- High Efficiency Point-Of-Load Regulation
- High thermal requirement applications
