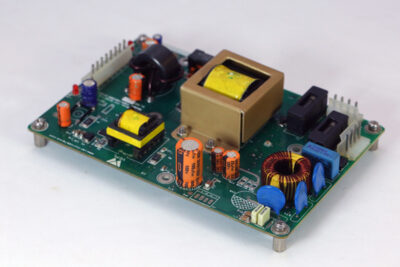

DC-DC Converter 65w Dual Output
VI65-480512-2V1C1
Description:
These series of DC/DC converters are available in Customized package and Model: VI65-480512-2V1C1 is capable of driving up to 65W. These DC/DC converters can accept an input voltage rail between 36VDC and 75VDC and delivers nominal output of 5VDC, 12VDC.
No external capacitors/ resistors required and it has reliable and robust design with following protection features: Output short circuit , Over Temperature Shutdown.
No external capacitors/ resistors required and it has reliable and robust design with following protection features: Output short circuit , Over Temperature Shutdown.
Key Features:
- Input range: 36V to 75VDC.
- Nominal Output : 5VDC@10A, 12VDC@1.25A.
- High Efficiency.
- Very low ripple and noise.
- < 0.04 % of line regulation
- < 0.5 % of load regulation for 5VDC, < 1.5 % of load regulation for 12VDC.
- < 0.5% of ripple.
- < 1% of noise.
- Fixed frequency switching operation.
- Isolated.
- Short circuit protection.
- Over Temperature Shutdown.
- LED Indications for Output , Input.
- 0O to +55OC operation.
- Compact in size.
Applications:
- Industrial power supplies
- Telecommunication systems
- Military
- Navy
- Submarine
- Ruggedized systems
