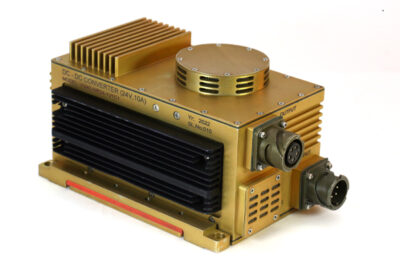

DC-DC Converter 240w-Dual Output
VI240-WR24-1V1C1
Description:
These series of DC/DC converters are available in Customized package and Model: VI240-WR24-1V1C1 is capable of driving up to 250W. These DC/DC converters can accept an input voltage rail between 100VDC and 400VDC and delivers a constant output voltage.
No external capacitors/ resistors required and it has reliable and robust design with following protection features: Reverse polarity protection, UVLO, OVLO, Output short circuit , Over Temperature Shutdown.
No external capacitors/ resistors required and it has reliable and robust design with following protection features: Reverse polarity protection, UVLO, OVLO, Output short circuit , Over Temperature Shutdown.
Key Features:
- Wide input range: 100 to 400 VDC.
- Output : 24VDC.
- High Efficiency.
- Very low ripple and noise.
- < 0.6 % of line regulation
- < 0.4 % of load regulation
- < 40mVp-p of ripple.
- < 90mVp-p of noise.
- Approx 60 mSec Holdup time.
- Fixed frequency switching operation.
- Isolated.
- UVLO (Under Voltage Lock Out).
- OVLO (Over Voltage Lock Out).
- Reverse polarity protection.
- Short circuit protection.
- Over Temperature Shutdown.
- -10O to +55OC operation.
- Compact in size.
- Meets MIL-STD-461E (EMI/EMC)
- Meets JSS 55555 (Environmental)
Applications:
- Industrial power supplies
- Telecommunication systems
- Military
- Navy
- Submarine
- Ruggedized systems
