Aluminium Encased Resistors

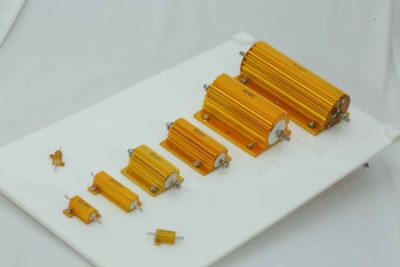

WIRE WOUND RESISTORS – Aluminium housed
VHS Series
Features:
- All welded construction
- Wattages from 5 Watts to 300 Watts
- Ohmic range from 0.01 Ohm to 100 K Ohm
- Low inductive type available
- Solder, cable, threaded or fast-on terminations
- Available as a bank in an enclosure using IP standards
- Any custom value, custom design available
Charactaristics:
| Tolerance | ±0.5%, ±1%, ±2%, ±3%, ±5%, ±10% |
| Temperature coefficient | ±200PPM/ ºC (lower PPM available) |
| Power dissipation (rated at 25ºC) | Derate linearly to 0 power at an ambient temperature of 275ºC |
| Insulation resistance | 1000 M Ohms at 500V DC |
| Di electric strength | 1KV upto 10 W and 2KV above 10 W for 60 seconds |
| Load life stability | ±5% (after full load dissipation for 1000 hours) |
| Maximum voltage | √PR Where P is power in Watts and R is resistance in Ohms |

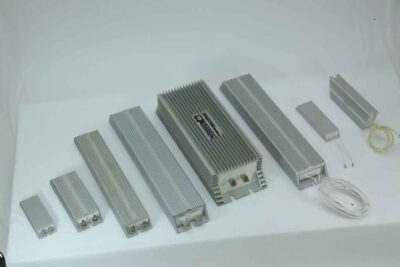

VHF BRAKING RESISTORS
VHF Series
Features:
- AVAILABLE IN 60W TO 1000WATTS
- RANGE FROM 0R1 TO 22K
- RUGGED CONSTRUCTION
- FLY LEADS AVAILABLE. ABOVE 150 WATTS
- LUGS/FLY LEADS ARE OPTIONAL
- INDUCTIVE / NON INDUCTIVE TYPES
- HEAT SINK / PANEL MOUNTING
- SUITABLE FOR DYNAMIC BRAKING
Charactaristics:
| Insulation resistance | 1000 Mega Ohms at 500V DC |
| Dielectric strength | 2KV upto 150 Watts and 3KV above 150 Watts |
| Power dissipation (rated at 25ºC) | Derate linearly to 0 power at an ambient temperature of 275ºC |
| Temp. coeffecient | ±250 PPM/ºC |
| Short time overload | 10 times rated wattage for 5 sec |
| Operating temperature | -55ºC to +200ºC |
